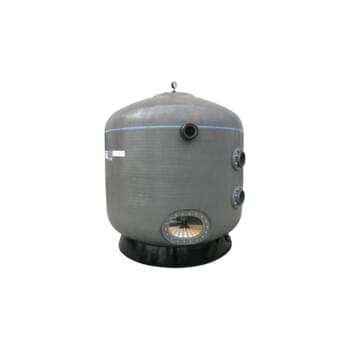

Micron Nozzle Plate Media Filter
Micron SPDD filters are fitted with a plate and nozzle system, which ensures uniform flow for both filtering and backwashing, ensuring maximum performance through the media bed.
-
Micron SPDD filters are fitted with a plate and nozzle system, which ensures uniform flow for both filtering and backwashing. This ensures maximum performance through the media bed.
The nozzle plate system also allows the introduction of pressurised air directly into the bottom of the filter media. Uniform introduction of air and water through the nozzle plate provides vigorous agitation and filter media expansion required for an effective air/water backwash leading to reduced backwashing times and reduced volumes of water. This saves up to 25% of backwash water.
-

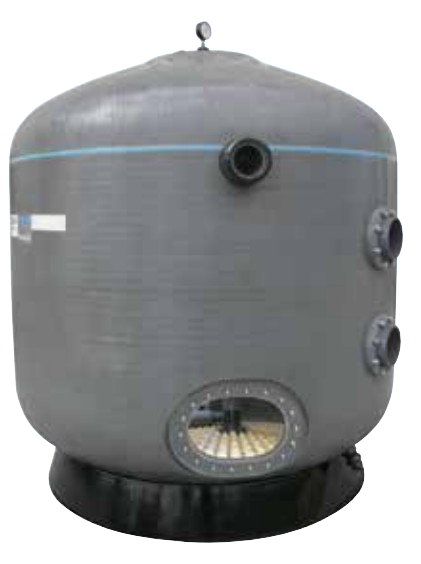

Patented nozzle plate filter
A new method of fabricating a nozzle plate filter eliminates failure rates experienced in most other nozzle plate filters. Nozzle plates are traditionally attached to the wall of the filter, separating the unfiltered water and filtered water of the tank. During filtration mode as well as backwashing mode, the plate has cyclic movement vertically flexing upwards and downwards, whereas the wall of the filter has cyclic movements horizontally flexing inwards and outwards.
-
-

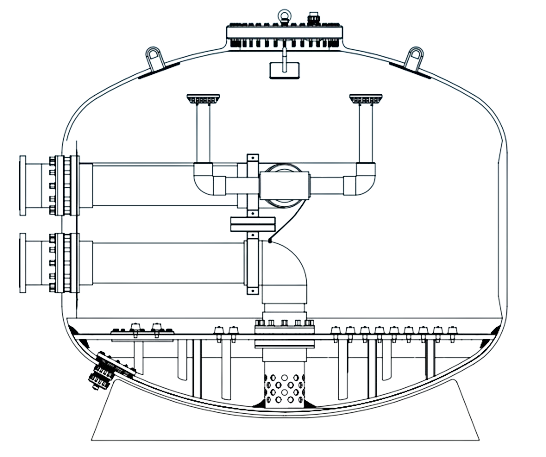

Flexible joint
Waterco’s unique construction method eliminates this problem, by creating a separate chamber within the filter. Additionally, the nozzle plate is attached to the wall of the filter with a flexible joint, instead of traditionally attaching a rigid joint. This removes the stress typically found in traditional nozzle plate filters, further enhancing the durability of these filters.
The nozzle plate system also allows the introduction of pressurised air directly into the bottom of the filter media. Uniform introduction of air and water through the nozzle plate provides vigorous agitation and filter media bed expansion required for an effective air/water backwash leading to reduced backwashing times and reduced volumes of water. Save up to 25% of backwash water.
FAQ
- What is the Micron Nozzle Plate Media Filter by Waterco?
The Micron Nozzle Plate Media Filter is an advanced water filtration system designed for various applications, featuring a nozzle plate design for efficient and thorough filtration/backwashing.
- What are they key features of the Micron Nozzle Plate Media Filter?
The filter typically features a durable tank construction, high-quality nozzle plate, and advacned filtration capabilities, ensuring superior filtration and backwashing efficieny.
- What maintenance is required for the Micron Nozzle Plate Media Filter?
Regular maintenance includes backwashing, media replacement from time to time inspecting the nozzles when replacing media, and ensuring that the filter is operating within specified parameters. Refer to the user manual for comprehensive maintenance guidelines.
- Where can I use the Micron Nozzle Plate Media Filter?
The filter is suitable for applications such as swimming pools, water features, aquaculture/ life support systems and industrial processes, offering effective water filtration.
- Is the Micron Nozzle Plate Media Filter energy-efficient?
The nozzle plate filter is more efficient than regular lateral style vessels.
The nozzle plate system also allows the introduction of pressurised air directly into the bottom of the filter media. Uniform introduction of air and water through the nozzle plate provides vigorous agitation and filter media bed expansion required for an effective air/water backwash leading to reduced backwashing times and reduced volumes of water. Save up to 25% of backwash water.
