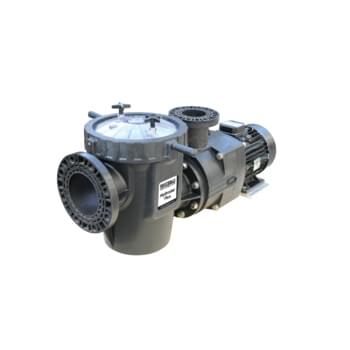

Hydrostar Plus Commercial Pumps
Hydrostar Plus pumps incorporate the latest technology in design and construction to produce a high performance self-priming pump. Constructed from an injection moulded glass reinforced thermoplastic that possesses superior mechanical and chemical resistance compared to steel.
-
Waterco commercial pumps are high performance corrosion resistant thermoplastic pumps, purpose built for commercial swimming pools, aquatic facilities and water parks.
Waterco’s pump’s unique construction offers several advantages in comparison to steel pumps. Glass reinforced thermoplastic possesses superior mechanical and chemical resistance compared to steel.
-
Hydrostar Plus
-

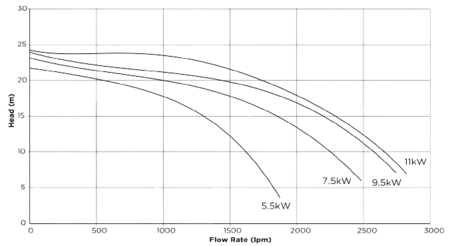

Performance Chart
-

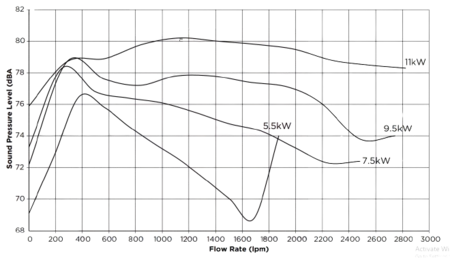

Noise Curve
-

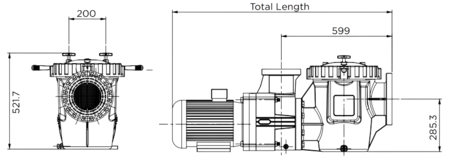

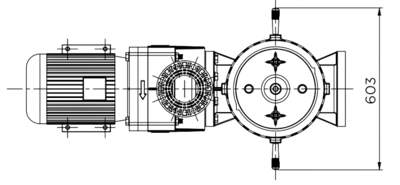

Hydrostar Plus Dimensions
-
Material
Motor Bracket : GF Polypropylene
Pump Bracket : GF Polypropylene
Pump Body O Ring : NBR
Seal Assembly : Alumina Ceramic/SS316/ Carbon (Silicon Carbide optional)
Impeller : GF Noryl
Its pump body is manufactured utilising state of the art engineering plastic moulding for extra strength. It’s seamless one-piece consists of no welds or seams or special tank linings which can corrode or electrolyse.

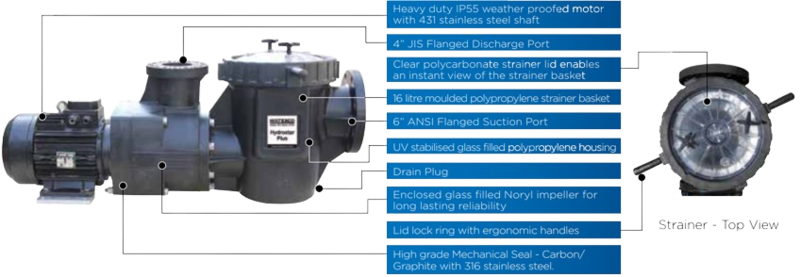

Key features:
- UV stabilised glass filled polypropylene housing
- Clear polycarbonate strainer lid for quick inspection
- Lid lock ring with ergonomic handles – simple removal & replacement of the lid without the use of additional tools
- 16 litre moulded polypropylene strainer basket
- Heavy duty IP55 weather proofed motor with 431 stainless steel shaft
- Enclosed glass filled Noryl impeller for long-lasting reliability
- 6” flange suction ports
- 4” flange discharge ports
- Drain plug

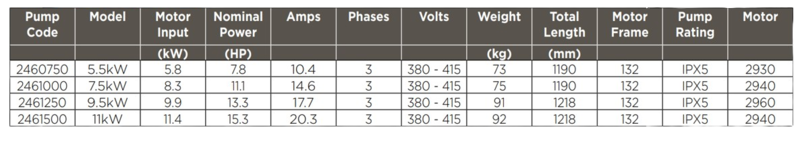

Technical Specification
| Model |
Nominal Power (HP) |
Motor input (kW) | Weight (kg) | Total Length (mm) | Motor Frame |
| 5.5kW | 7.8 | 5.8 | 73 | 1190 | 132 |
| 7.5kW | 11.1 | 8.3 | 75 | 1190 | 132 |
| 9.5kW | 13.3 | 9.9 | 91 | 1218 | 132 |
| 11kW | 15.3 | 11.4 | 92 | 1218 | 132 |
Its pump body is manufactured utilising state of the art engineering plastic moulding for extra strength. It’s seamless one-piece consists of no welds or seams or special tank linings which can corrode or electrolyse.
Key features:
- UV stabilised glass filled polypropylene housing
- Clear polycarbonate strainer lid for quick inspection
- Lid lock ring with ergonomic handles – simple removal & replacement of the lid without the use of additional tools
- 16 litre moulded polypropylene strainer basket
- Heavy duty IP55 weather proofed motor with 431 stainless steel shaft
- Enclosed glass filled Noryl impeller for long-lasting reliability
- 6” flange suction ports
- 4” flange discharge ports
- Drain plug
Technical Specification
| Model |
Nominal Power (HP) |
Motor input (kW) | Weight (kg) | Total Length (mm) | Motor Frame |
| 5.5kW | 7.8 | 5.8 | 73 | 1190 | 132 |
| 7.5kW | 11.1 | 8.3 | 75 | 1190 | 132 |
| 9.5kW | 13.3 | 9.9 | 91 | 1218 | 132 |
| 11kW | 15.3 | 11.4 | 92 | 1218 | 132 |
