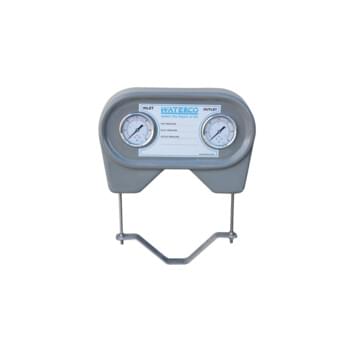

Dual Pressure Gauge Panel

Waterco’s Dual Pressure gauge panel extremely versatile pressure measurement and test instrument. It can simultaneously display the output of two pressure gauges, so that you can accurately monitor the filter’s pressure drop.

ENQUIRE ABOUT THIS PRODUCT

You are a Company

First Name * Last Name *

Email * Phone Number

Street Address Suburb *

Country * State Postcode *

Sign Up for Waterco Newsletter

Receive Pool & Spa Newsletter Receive Water Treatment Newsletter Receive Aquaculture Newsletter

Product Name * Enquiry *

Your request will be delivered to the following office.

Features
Full Description
Brochures & Manuals

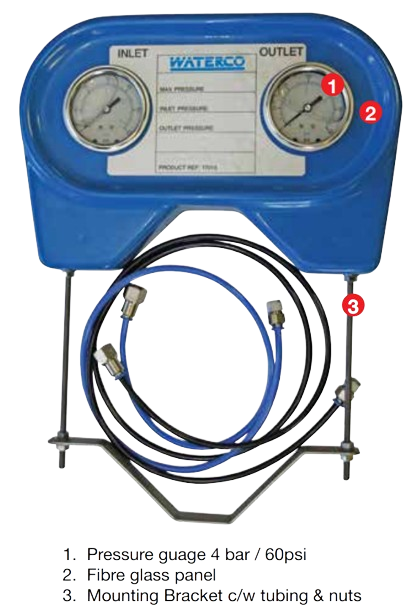

Waterco’s Dual Pressure Gauge Panel is an extremely versatile pressure measurement and test instrument. It can simultaneously display the output of two pressure gauges, so that you can accurately monitor the filter’s pressure drop.

Features
- Easy installation
- Fibreglass panel
- Precision measurement
- Liquid filled gauges that minimizes the effect of severe environments, protects the gauge internals and provides continuous lubrication in the mechanism
- Corrosion resistant stainless steel casing gauges
Technical Specification
- Service: Liquids Case & Ring (Pressure Gauges): stainless steel
- Pressure Limit: 0 -4.1 BAR (0 -60 PSI)
- Process Connections: 1/4”BSPT
- Accuracy: 2.5% full scale
- Bourdon Tube: Phosphor bronze
- Window: Polycarbonate
- Dial: Galvalume white background with blue and black markings
- Pointer: Galvalume black finish
